CAMCO Hydrogen/Inert Furnaces

Choose from Twelve Standard Furnace Models for Your Brazing Applications

CAMCo offers a large range of standard hydrogen/inert furnace models, all equipped with the same outstanding user-friendly control features.

Such a wide choice of furnaces allows CAMCo customers to select the perfect size furnace for their applications, including small, economical units for R&D or start-up production requirements.

As production needs increase, CAMCo customers can easily move up to a larger unit and hot zone with the same easy-to-use programming features and process controls.

Automatic and User-Friendly Features

CAMCo customers prefer the ease of using a CAMCo furnace because:

  • All our furnaces are fully automatic. One button push starts the run. Automatically it will purge, process gas fill, ramp to temperature and soak, bubbler for humidification of process gas, cooldown and post purge.
  • All furnaces are ergonomically designed for friendly loading
  • All furnaces feature user friendly programming
  • Paperless Chart Recorder
  • Sight glass for calibration melts
  • Equipment on casters to roll easily into place

High Performance and Low Maintenance

CAMCo furnaces are built to last and designed for high performance and low maintenance. Only a CAMCo furnace can provide efficiency benefits like these:

  • Reliable results with superior quality controls
  • 19 Programs - 20 segments per program
  • Increased profitability from multiple runs per day
  • High yield with fewer rejected parts
  • Low maintenance and less down time

Reliability & Safety Features Protect the Operator and Equipment

Safety and reliability are always important concerns. All CAMCo furnaces include state-of-the-art safety & reliability features, including:

  • Low Coolant Flow
  • Low Gas Pressure Switches
  • Purge Assure Circuit
  • Panel Interlock
  • High Cabinet Temperature
  • Thermocouple break protection (Thermocouple burn-up) assures that heating power is removed from the furnace in the event of sensor failure
  • Overtemperature indication is read on a separate control module from the monitor thermocouple. This overtemp alarm causes the heating elements to shut down as a further backup.
  • Hydrogen is prohibited from entering the system and heating cannot begin until the chamber cover is closed, sealed and purged. At the end of a programmed run the chamber is inhibited from being opened until the work has cooled to a pre-defined safe temperature.
  • A Purge Assure Circuit provides an internally set minimum timed Nitrogen purge regardless of the program status whenever power or the program is interrupted.

CAMCo Warranty & Service Advantage

  • CAMCo has been making quality furnaces for over 25 years.
  • We provide and take pride in our impeccable service.
  • Replacement parts are stocked for immediate repair.
  • We provide the best warranty in the industry.
  • Many options available including Computer Controls, Extension Table, Cable Hoist, Dewpoint Monitor, Vacuum Purge, Tower Indicator Lights, Survey Thermocouples, etc.




CAMCo Hydrogen/Inert Furnace Models:

SMALL MODELS (220V 1PH)

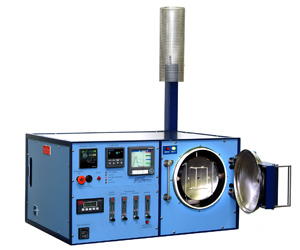

G Class Furnaces - Tabletop Models


CAMCo G Class furnaces are ideal for schools and R&D departments because of their small, efficient size and low power requirements.

Our Model G furnaces carry a CE marking for EU compliance.

Temperature Range: 1200° C to 2000° C
Hot Zone: 5"W x 5"H x 10"D
Frame dimensions: 36"W x 26"D x 21" H


Work Zone Size
Max Temp
5"W.x5"H.x10"Deep
1250C/2280F
5"W.x4"H.x10"Deep
1500C/2700F
6" Dia. X 10" Deep
1600C/2900F
4" Dia. X 8" Deep
1800C/3250F
4" Dia. X 8" Deep
2000C/3600F

MEDIUM MODELS
B Class Furnaces

Useful for most applications the B Class models are true work horses. Excellent for applications ranging from wet metallizing to dry stainless steel brazing.

Temperature Range: 1200° C to 2000° C
Hot Zones from 12”Dia. x 18”H
Frame dimensions: 44"W x 28"H x 50" D

Work Zone Size
Max Temp
12" Dia. X 18" Deep
1250C/2280F
12" Dia. X 18" Deep
1600C/2900F
10" Dia. X 14" Deep
1700C/3100F
10" Dia. X 14" Deep
1800C/3250F
8" Dia. X 12" Deep
2000C/3600F

LARGE MODELS
J Class Furnaces


This furnace is our largest model and is great for large items and high production of smaller products. Excellent for applications ranging from active metal brazing to clean firing electron tube parts. This furnace is available with up to a 72” tall hot zone.

Temperature Range: 1200° C to 1600° C
Hot Zone from 18”D x 30”H
Frame dimensions: 54"W x 34"D x 121" H

Work Zone Size
Max Temp
"18"" Dia. X 24"" H."
1250C/2280F
"18"" Dia. X 48"" H."
1250C/2280F
"18"" Dia. X 30"" H."
1600C/2900F
